FJ Cruiser 6 Switch Panel W/Uni Source Bracket sPOD
462
89 782 р.
/ шт
Уточняйте актуальную стоимость у менеджера. Она может отличаться от указанной.
Под заказ
Расчётное время доставки:
22/01/25
?
Есть вопросы? Задайте их специалисту:
8-800-555-78-01
8-800-555-78-01
Описание:

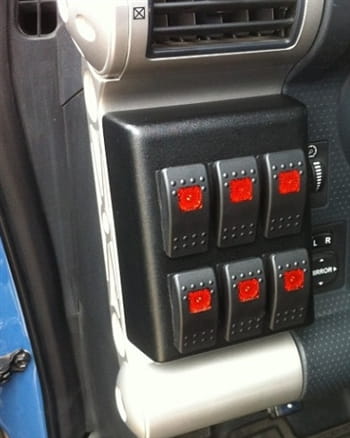

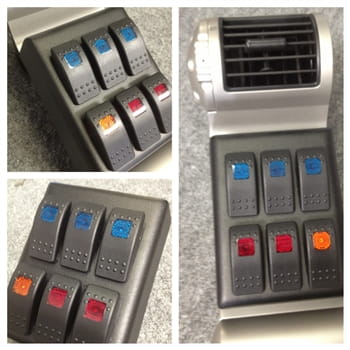

FJ Cruiser 6 Switch Panel W/Uni Source Bracket. FJ Cruisers now have the option of a switch panel. The new sPOD switch panel is easy to install and arrives with switches installed and wired for plug and play ease like our Jeep TJ and JK systems. Minimal cutting and drilling required.
Each system includes the following:
- All required mounting brackets and hardware.
Included:
- Six Contura switches, 2 Red, 2 Amber and 2 Green actuators, two piece Wire Harness set with 8 multi-color leads utilizing 18 gauge wires. Each end has an automotive connector made by Deutsch.
- All wires are wrapped in high temp abrasion resistant nylon braided sleeving.
- The Source 6 Circuit power distribution system includes:
- 12 position terminal block for accessory attachment
- 6 Bosch style cube style relays (SPST 40amp)(plug-in style)
- 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
- 6 Diodes to protect sensitive accessories such as LED lights from field collapse
- Inline 50 amp manual resetting circuit breaker
- 8 gauge power leads with crimped and soldered terminal for connection to the battery
- Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 10.6VDC and cuts-back in at 12.4VDC so there is enough juice to start your vehicle in case you left an accessory on!
- Fuse for LVCO which can be removed to bypass the LVCO
Характеристики:
- Toyota,FJ Cruiser,|2008,2008,Toyota,FJ Cruiser,Trail Teams Special Edition|2008,2008,Toyota,FJ Cruiser,TRD Special Edition
- Марка машины: TOYOTA
- Модель машины: FJ CRUISER
