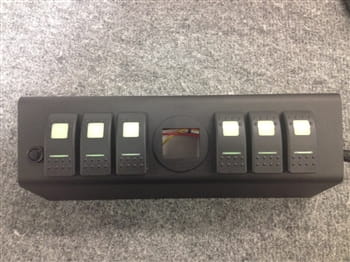

JK Switch Panel 6 Switch W/Genesis Adapter 09-17 Wrangler JK G Screen Not Included Red sPOD
8-800-555-78-01
JK Switch Panel 6 Switch W/Genesis Adapter G Screen not included 09-17 Wrangler JK Red. This panel includes the new Genesis adapter to allow you to install the Genesis G Screen. Not Recommend for Custom rockers. Switches do not have lower pilot light.
Each system includes the following:
- All required mounting brackets and hardware.
- System will come pre-wired ready to install.
- G Screen not included.
Included:

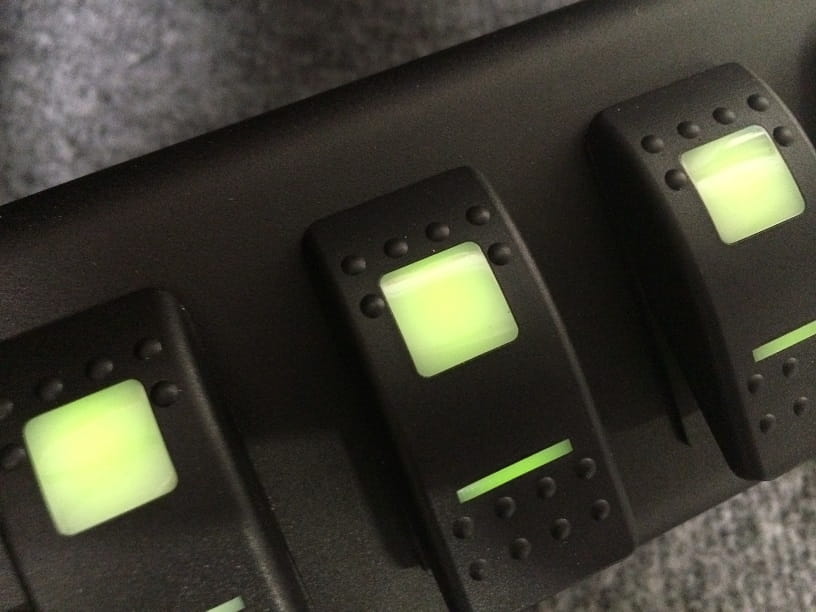

Switch panel, six single light Contura switches, Red actuators (installed and pre-wired), two piece Wire Harness set with 8 multi color leads utilizing 18 gauge wires. Each end has an automotive connector made by Deutsch.
- All wires are wrapped in high temp abrasion resistant nylon braided sleeving.

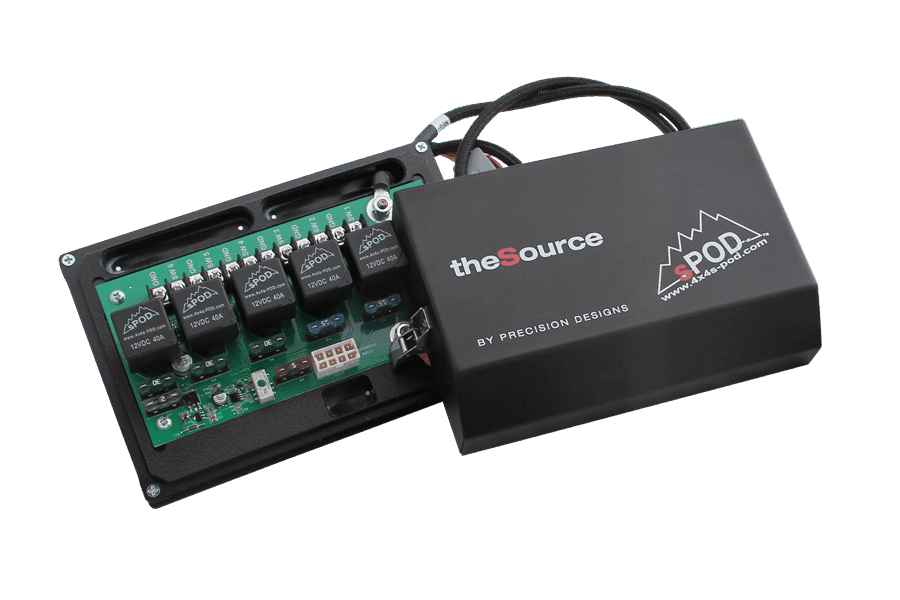

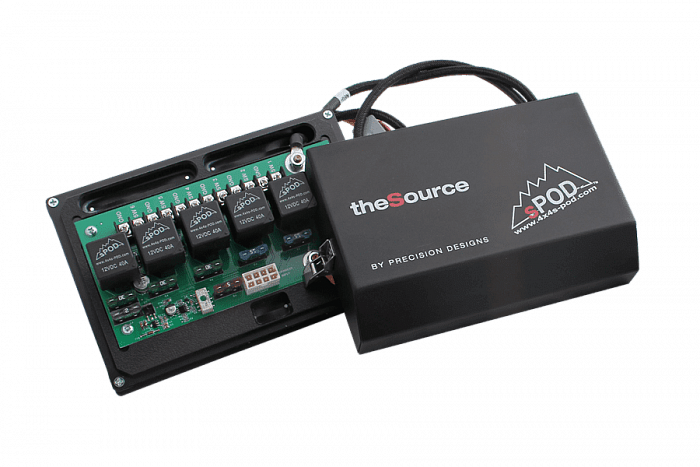

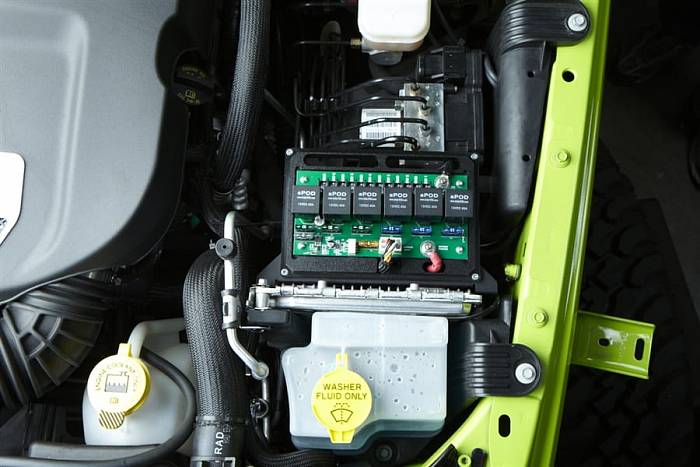

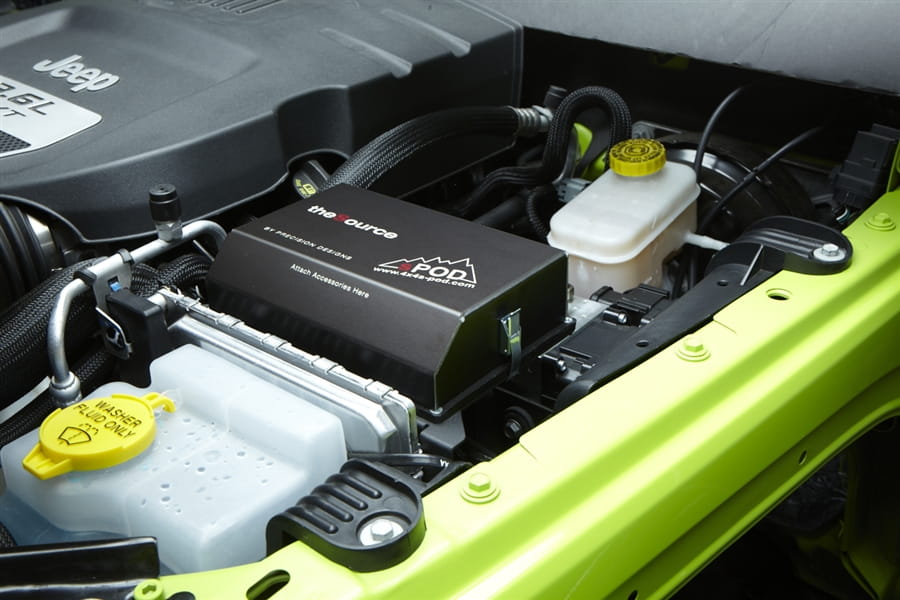

- The Source 6 Circuit power distribution system includes:
- 12 position terminal block for accessory attachment
- 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
- 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
- 6 Diodes to protect sensitive accessories such as LED lights from field collapse
- Inline 50 amp manual resetting circuit breaker
- 8 gauge power leads with crimped and soldered terminal for connection to the battery
- Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 11.2VDC and cuts-back in at 12.8VDC so there is enough juice to start your vehicle in case you left an accessory on!
- Fuse for LVCO which can be removed to bypass the LVCO
- Mounting bracket for Jeep Wranglers
- Jeep,Wrangler,Rubicon|2009,2017,Jeep,Wrangler,Sahara|2009,2017,Jeep,Wrangler,Unlimited Rubicon|2009,2017,Jeep,Wrangler,Unlimited Sahara|2009,2010,Jeep,Wrangler,Unlimited X|2009,2010,Jeep,Wrangler,X|2010,2017,Jeep,Wrangler,Sport|2010,2017,Jeep,Wrangler,Unlimited Sport|2011,2011,Jeep,Wrangler,70th Anniversary|2011,2011,Jeep,Wrangler,Unlimited 70th Anniversary|2016,2016,Jeep,Wrangler,75th Anniversary|2016,2016,Jeep,Wrangler,Sport S|2016,2016,Jeep,Wrangler,Unlimited 75th Anniversary|2016,2016,Jeep,Wrangler,Unlimited Sport S
