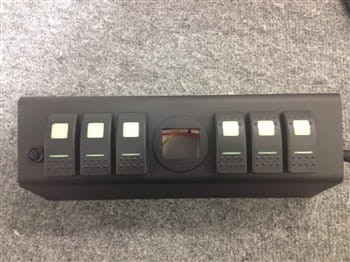

JK Switch Panel 6 Switch W/Genesis Adapter 09-17 Wrangler JK G Screen Not Included Green sPOD

JK Switch Panel 6 Switch W/Genesis Adapter G Screen not included 09-17 Wrangler JK Green. This panel includes the new Genesis adapter to allow you to install the Genesis G Screen. Not Recommend for Custom rockers. Switches do not have lower pilot light.
Each system includes the following:

• All required mounting brackets and hardware.
• System will come pre-wired ready to install.
• G Screen not included.

Included:

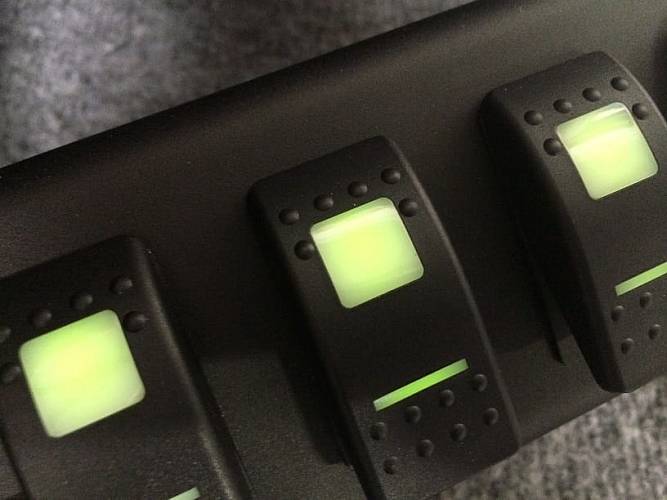

Switch panel, six single light Contura switches, Green actuators (installed and pre-wired), two piece Wire Harness set with 8 multi color leads utilizing 18 gauge wires. Each end has an automotive connector made by Deutsch.

• All wires are wrapped in high temp abrasion resistant nylon braided sleeving.

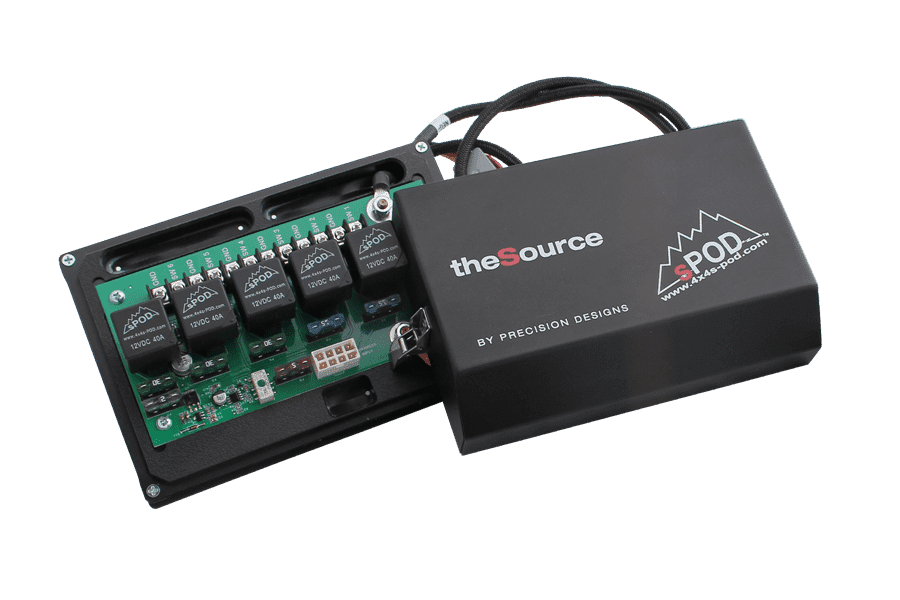

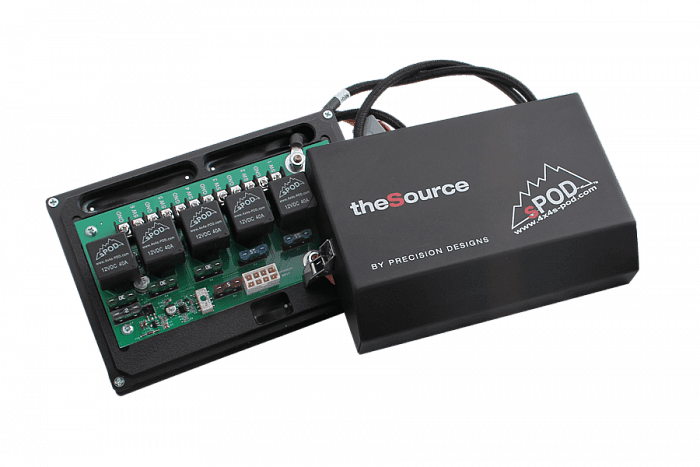

• The Source 6 Circuit power distribution system includes:
• 12 position terminal block for accessory attachment
• 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
• 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
• 6 Diodes to protect sensitive accessories such as LED lights from field collapse
• Inline 50 amp manual resetting circuit breaker
• 8 gauge power leads with crimped and soldered terminal for connection to the battery
• Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 11.2VDC and cuts-back in at 12.8VDC so there is enough juice to start your vehicle in case you left an accessory on!
• Fuse for LVCO which can be removed to bypass the LVCO
• Mounting bracket for Jeep Wranglers
